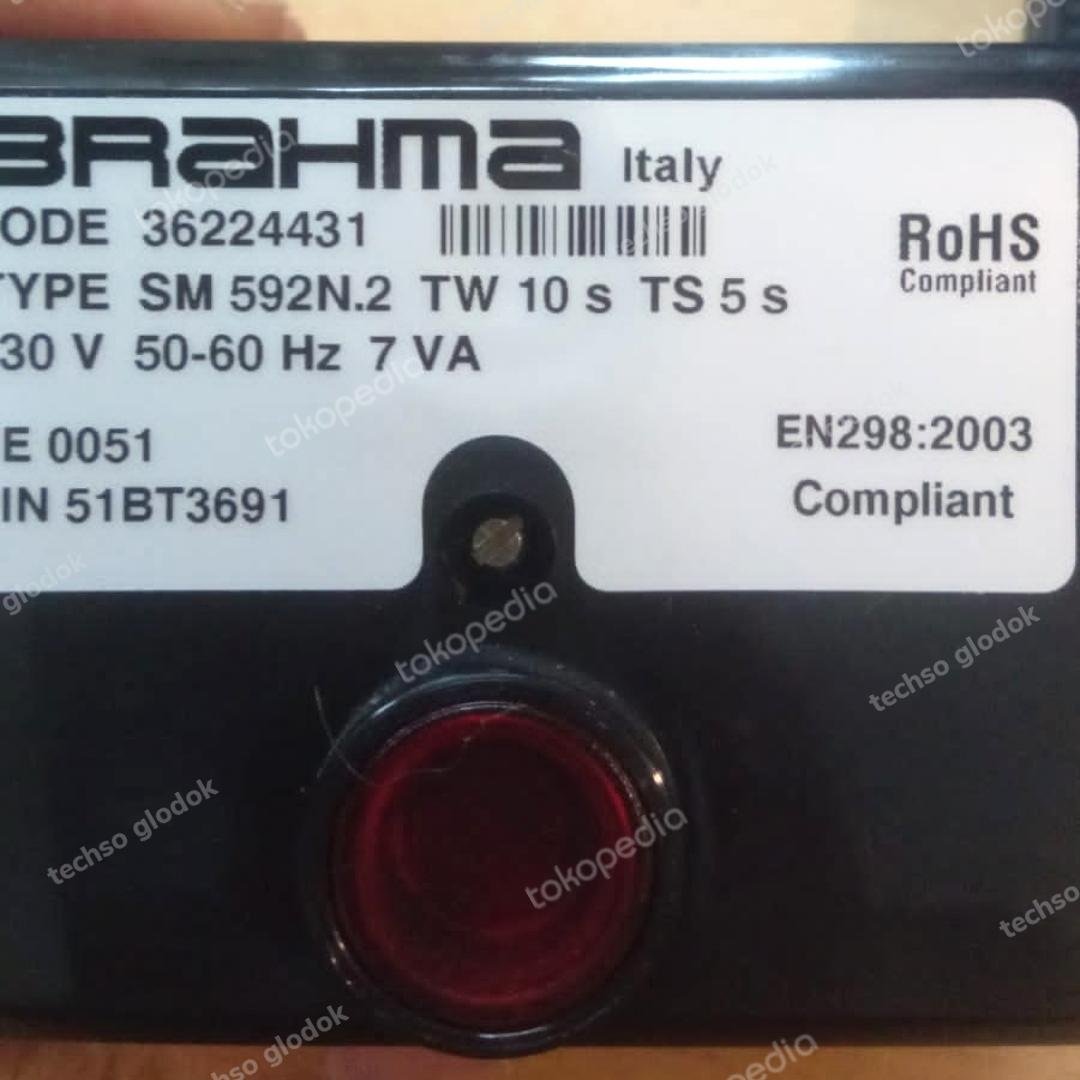

Brahma SM 592N.2
DESCRIPTION
This series of electronic systems is suitable to control atmospheric gas burners for non-permanent operation with or without fan in the combustion circuit.
All control units are provided with non-volatile lockout, i.e.
restart from the safety shutdown condition can only be accomplished by manually resetting the system. The control units of this series are suitable for:
– combi boilers
– heating boilers
– hot air generators
– radiant tube heaters
– water heaters.
Their technical and manufacturing characteristics and the variety of models make them suitable also for the automation of ovens, cookers, stoves and, more generally,
for gas firing appliances equipped with atmospheric burner.
TECHNICAL DATA
Power supply: 230V-50/60Hz
on request: 110/120V-50/60Hz
Operating temperature range: -20°C +60°C
Humidity: 95% max at 40°C
Protection degree:
socket NG IP 40 (after installation)
socket P/R IP 00
