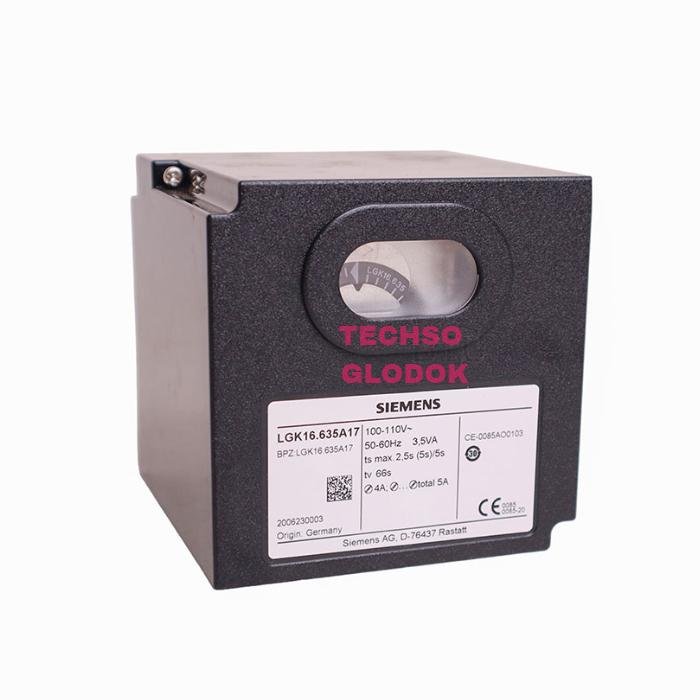

SIEMENS LGK16.635A17 110V

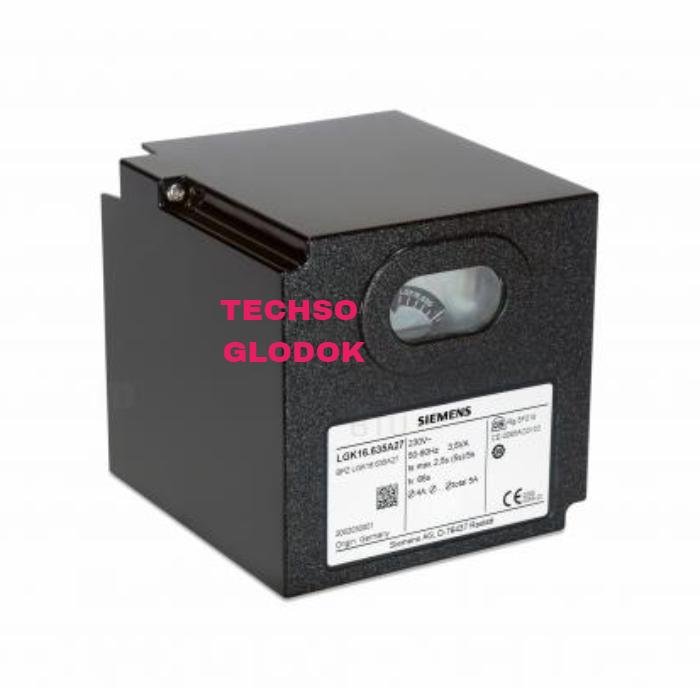

SIEMENS LGK16.635A27 230V burner control original
Burner controls
? For gas, oil or dual-fuel forced draft burners of medium to high capacity
? For multistage or modulating burners in continuous operation
? With air pressure supervision for checked air damper control.
? Flame supervision
– LOK16: With silicon detector RAR
– LGK16: With flame detector QRA53/QRA55/ionization probe
? Burner control for oil burners or gas burners in accordance with EN 298:2012
? Suitable for use with air heaters (WLE)
? With self-checking flame signal amplifier
The LOK16…/LGK16… and this Data Sheet are intended for use by OEMs which
integrate the burner controls in their products.
Use
Burner controls type LOK16…/LGK16… feature a self-checking flame supervision
circuit.
The flame supervision circuit initiates the safety actions in the case of… :
• … premature or missing flame signal
• … any kind of fault on the flame detector, the detector cables or the flame signal
amplifier that could simulate a flame signal during burner operation
The burner controls are therefore suited for use in all types of oil- or gas-fired
combustion plant where self-checking flame supervision systems are either mandatory
or recommended.
For example:
– Burners that operate continuously
– Burners in intermittent operation that, in the case of great heat demand, may
operate continuously for more than 14 hours, e.g. in plant using boiler sequencing
– Burners that need to comply with the German TRD 411 and TRD 412 regulations
for steam boilers
– Burners in plant where, for specific safety requirements, supervision of the burner
by a self-checking flame supervision system seems advisable
– The control sequence and connection circuitry of the LOK16…/LGK16… burner
controls are identical to those of the LAL2… and LFL1… respectively (with the
exception of the LFL1.148), so that existing combustion plant can also be equipped
with self-checking burner controls,
? provided very
