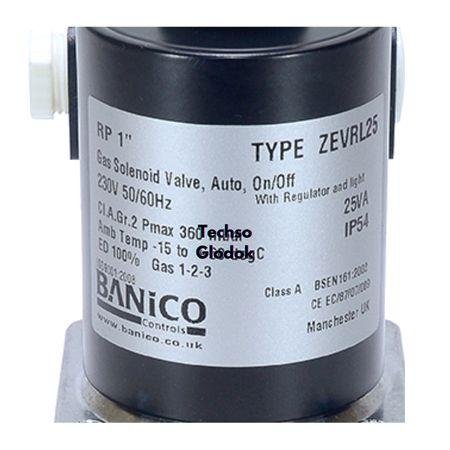

BANICO ZEVRL25 SIZE 1″ – solenoid valve

BANICO ZEVRL25 SIZE 1″ – solenoid valve

Gas Solenoid Valve Automatic On/Off & Flow Adjustable
With Visual Indicator Light – Normally Closed – 230VAC

APPLICATION
? Gas Solenoid Valves are used for safety and control of gas for shut-off in gas feed pipes
? Suitable for various gases, including Natural gas, Propane and LPG
? ¼” Inlet and outlet plugs suitable for CPI switch, pressure guage, connection to proving and
interlock systems
OPERATION AND INSTALLATION
? Two-way, normally-closed – energise to open.
? Rapid opening.
? Adjustable flow rate regulator on top of the coil.
? Mounting direct on pipeline more or less 90 degrees (max) from the vertical axis.

TECHNICAL SPECIFICATION
? Opening time ? Closing time ? Max number of operations : 20 per minute.
? ¼” Inlet and outlet plugs.
? Incorporated AISI 303 steel mesh filter.
? Cable entry gland PG11 Live, Neutral, Earth.
? Protection to IP54
? NBR based seal with a strong resistance to hydrocarbons (UNI 4916-74).
? Bodies and flanges in diecast aluminium.
? AISI 302 steel pressure spring.
? Chromate Fe 37 steel armature.
? Ambient temperature -15°C to 60°C.
Coil temperature about 70°C

ELECTRICAL SPECIFICATION
? Supply voltage 230V (+10%-15%) 50-60Hz.
? Coils to Class F, 360° rotation, suitable for permanent excitation.
