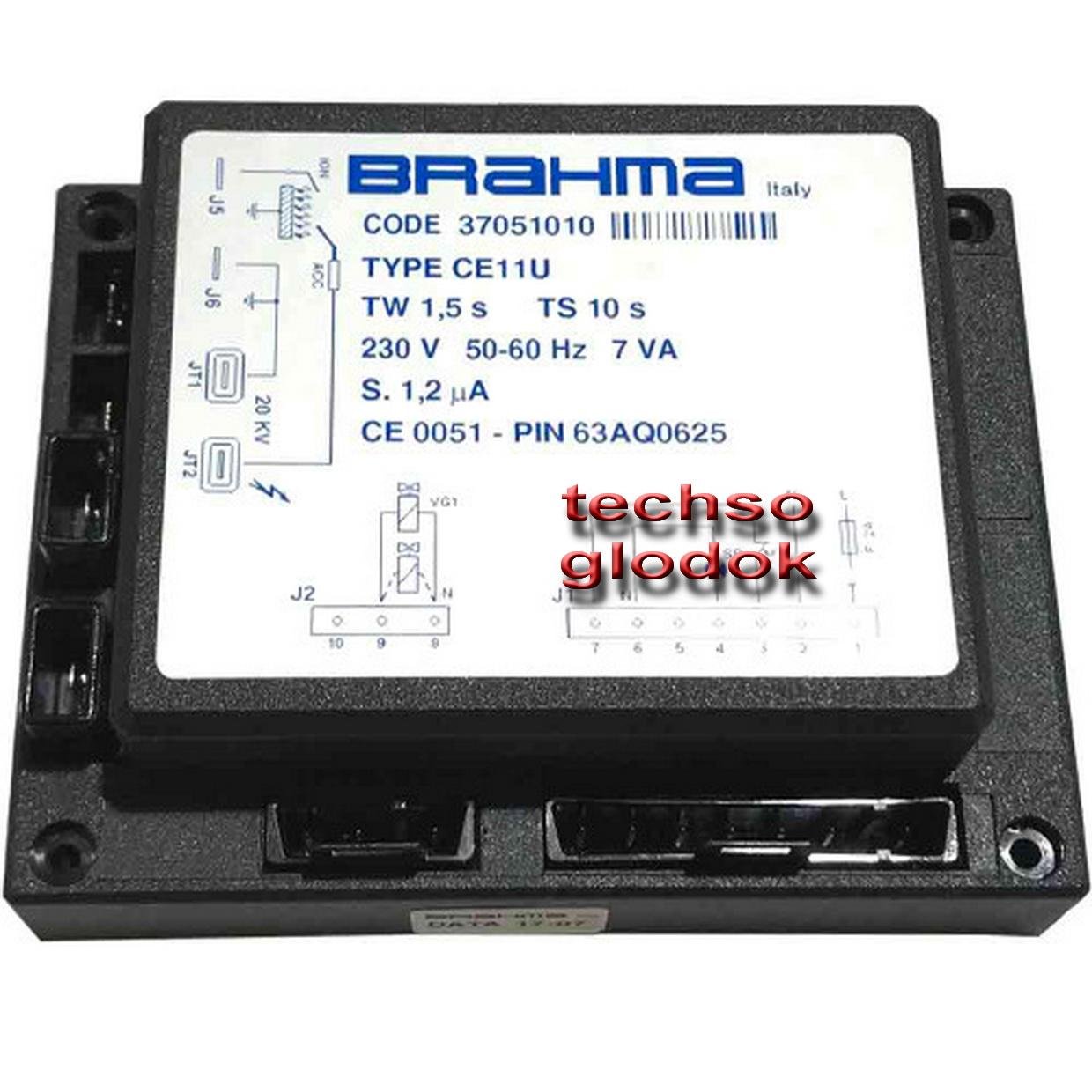

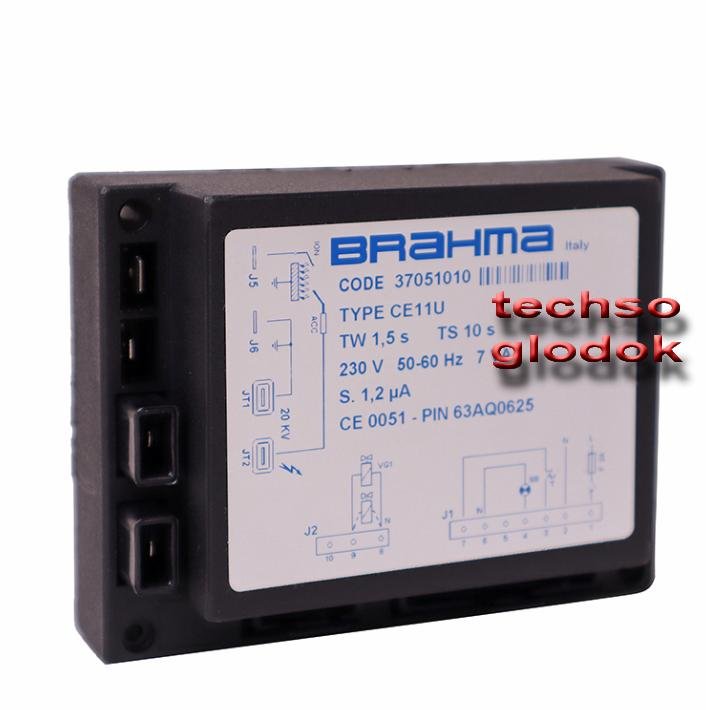

BRAHMA CE11U control box mesin burner

APPLICATION
This range of electronic gas burner control systems is suitable
for atmospheric gas burners for non-permanent operation with
or without fan in the combustion circuit.
These controls are provided with both non volatile lockout, i.e.
the restart from this condition is only possible by manual
reset, and volatile lockout, i.e. the restart from this condition is
possible by the interruption and subsequent restoration of the
mains supply.
The automatic burner control units of this series are suitable
for:
– combi boilers
– heating boilers
– hot air generators
– radiant heaters
– water heaters.
Thanks to the design and variety of models, they can also be
used for the automation of ovens, cookers, stoves and in gas
firing appliances with atmospheric burner in general.
FEATURES
Table 1 shows the main features of this series. Other
important features are:
? CE type certification in accordance with Gas Appliance
Directive 90/396 and subsequent modifications 93/68 (see
table 1);
? in compliance with EN 298 (European standard for
automatic gas burner flame monitoring and control
systems);
? flame monitoring based on the rectification property of the
flame (ionization);
? two independent safety contacts in series on the gas valve
output;
? electrical service life at max. declared loading > 250.000
operations;
? inbuilt ignition device with completely solid state design
and high efficiency;
? auxiliary contact for low power ignition or main gas valve
control for intermittent pilot systems type SELV, therefore
suitable to control circuits type SELV – Safety Extra Low
Voltage, e.g. 24V (see Table 1);
? volatile lockout in case of flame loss in running condition
for type CE12U NR.
