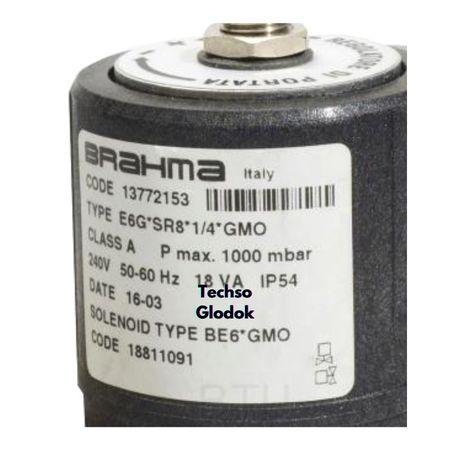

BRAHMA E6G*SR8*1/4*GMO solenoid gas burner

BRAHMA E6G*SR8*1/4*GMO solenoid gas burner

DESCRIPTION
This series of solenoid valves are of normally closed type, suitable for civil and industrial applications, supplied with alternate or direct current. These valves are divided into two
groups: with 8 mm or 10 mm orifice.
Gas valves, marked with “S” or “L” after type reference, have coil operating in direct current, which permitted to make its actions as silent as possible.
There is the possibility to have valves provided with inlet pressure plug or outlet pressure plug (excluding G1/4”connection ones) and, 10 mm orifice only, valves equipped with hydraulic lag group, which permits slow opening; in this case it is also possible to have a quick and adjustable
opening initial flow.

TECHNICAL FEATURES

Supply voltage (1): 230 Vac / 50-60 Hz
110 Vac / 50-60 Hz
Operating temperature: -10°C / +60°C
Closing time: £ 1s
Opening time: £ 1s (quick opening
versions only)
Mounting: vertical and horizontal
Body: die-cast brass
