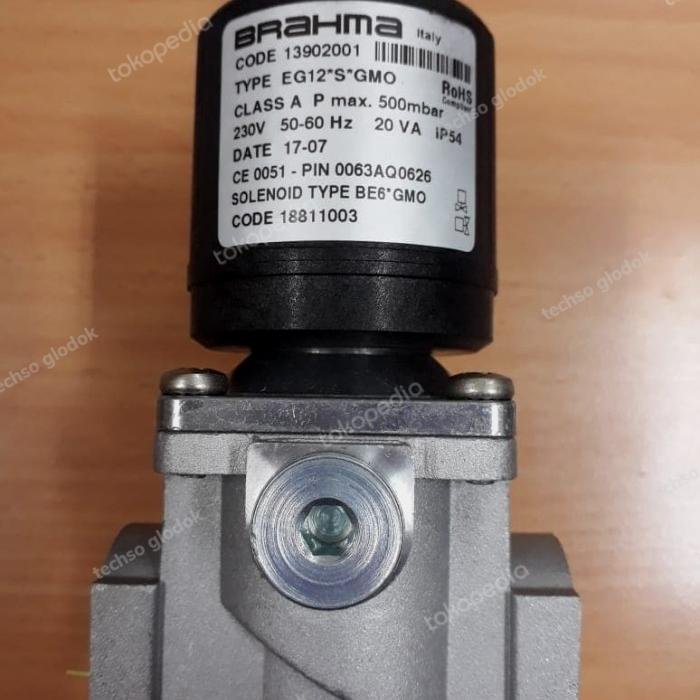

BRAHMA EG12 S GMO solenoid valve

BRAHMA EG12 S GMO SOLENOID VALVE

CLASS A
P MAX 500 MBAR
connection 1/2″
230V
50-60HZ
20 VA
IP 54

DESCRIPTION

This series of solenoid gas valves are of normally closed
type, suitable for civil and industrial applications, supplied
with alternate or direct current and inclusive of a wire-net filter
on the inlet to avoid the entrance of dirt of > 1 mm.
Gas valves marked with “S” or “L” after reference type have
direct current supplied coil, which permitted to make actions
as silent as possible.
There is the possibility to have a fast opening or a slow
opening valve (obtained by special hydraulic shockobsorber),
with flow adjustment and fast opening initial flow
adjustment and inlet pressure plugs (all of them) or outlet
plugs (excluding those with flow adjustment).

TECHNICAL FEATURES

Supply voltage (1): 230 Vac / 50-60 Hz
110 Vac / 50-6 Hz
Operating temperature: -10°C / +60°C
Closing time: £ 1s (all versions)
Opening time: £ 1s (quick opening
versions only)
Mounting: vertical and horizontal
Body: die-cast aluminium
Core hitch: PG9
