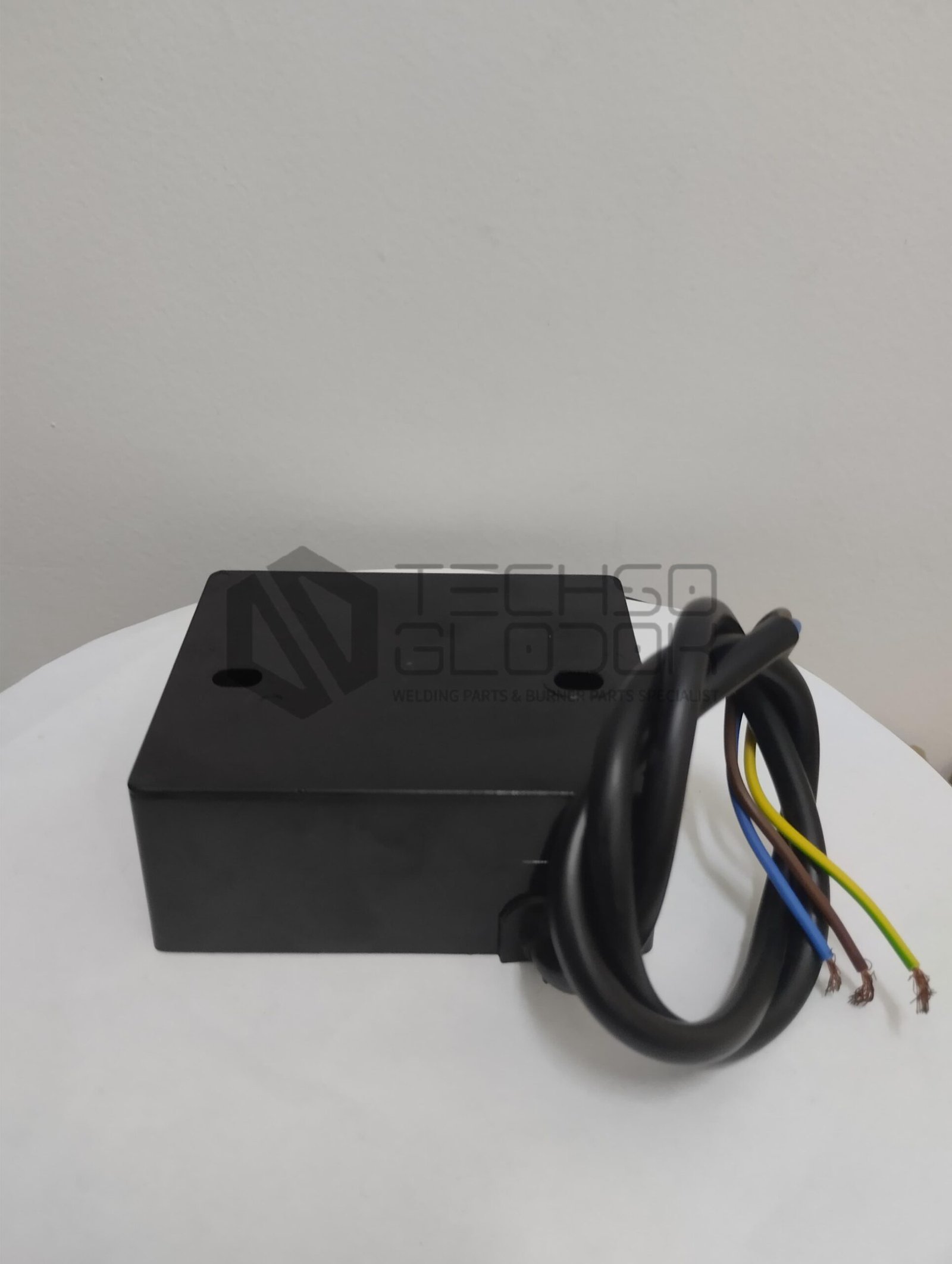

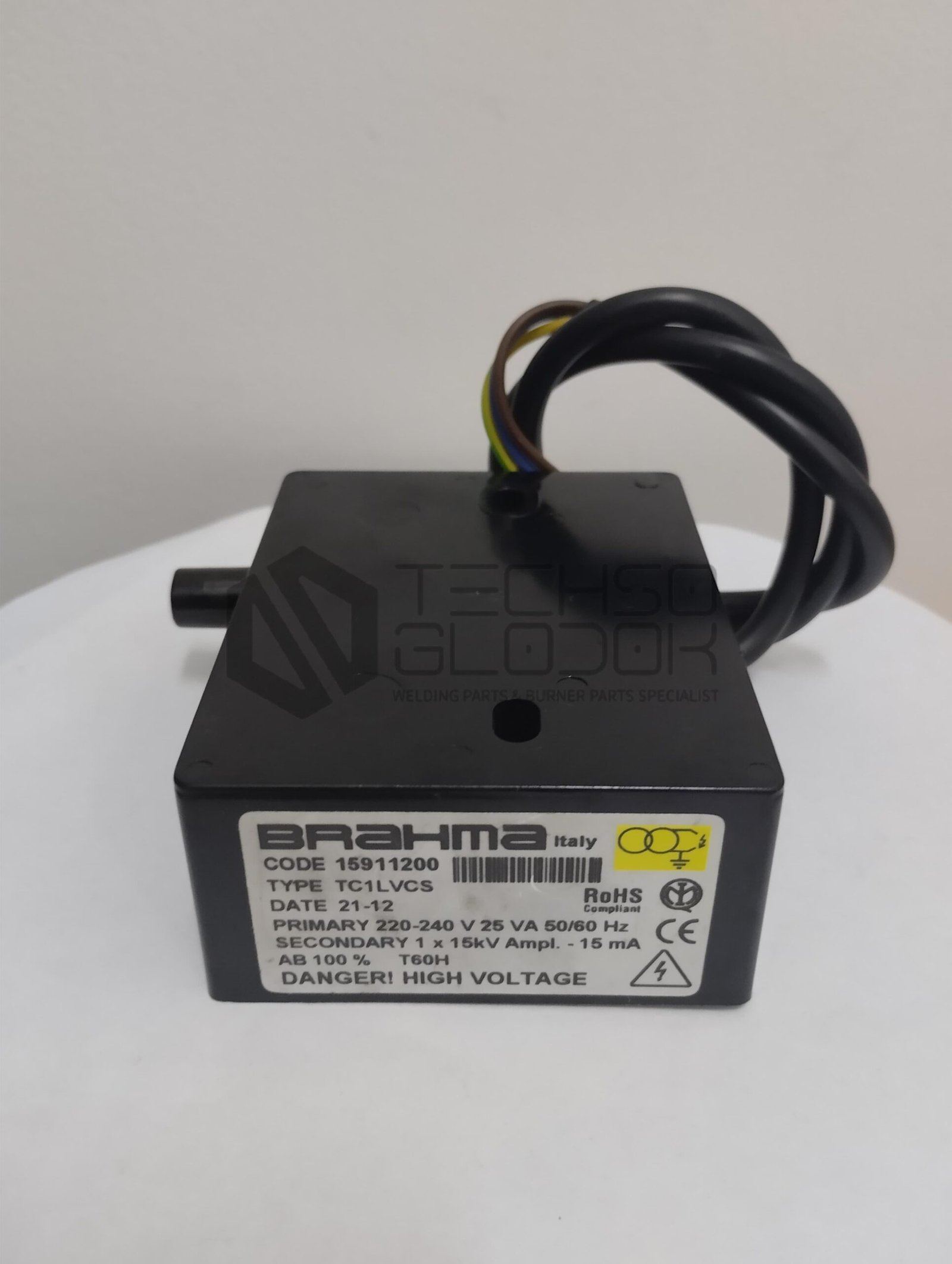

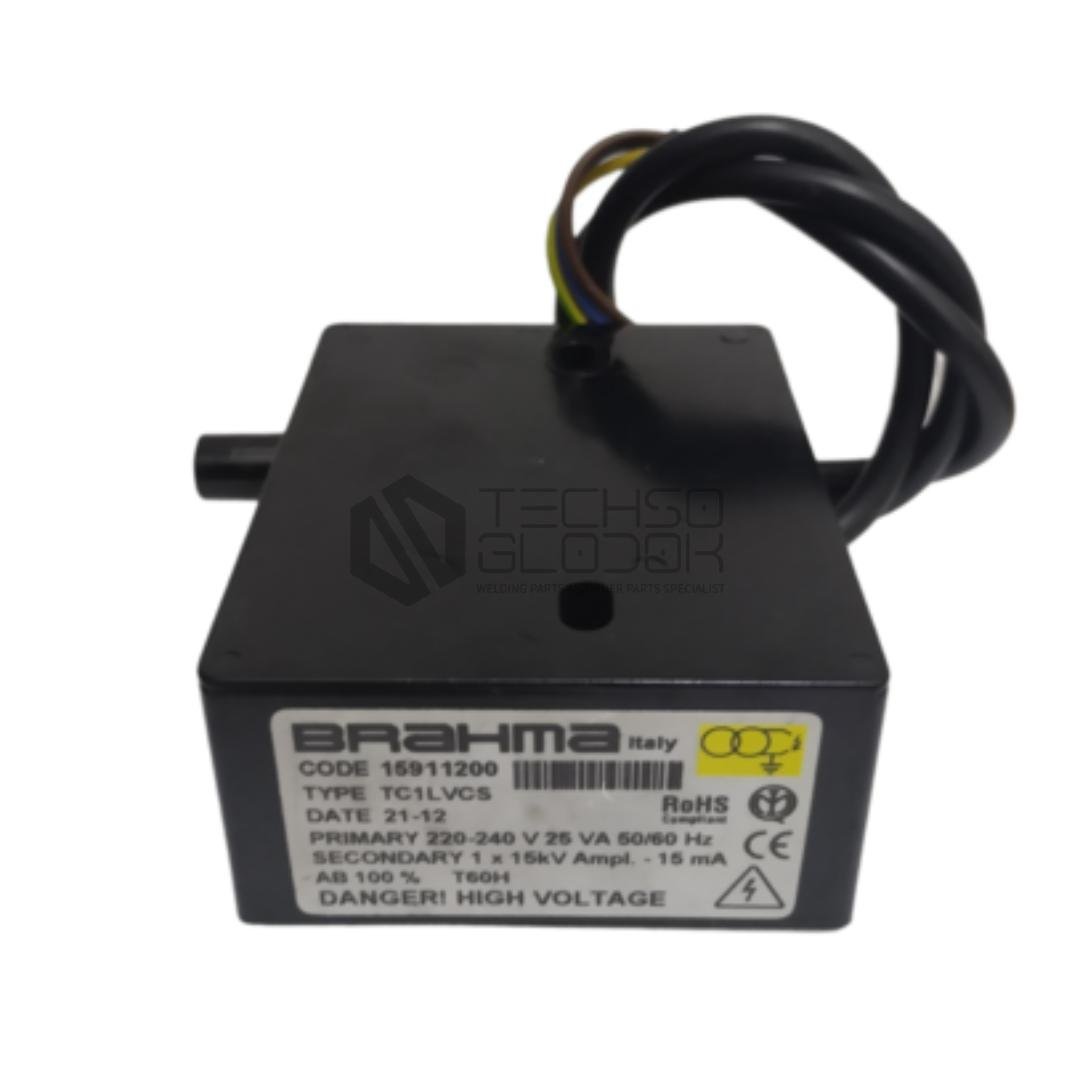

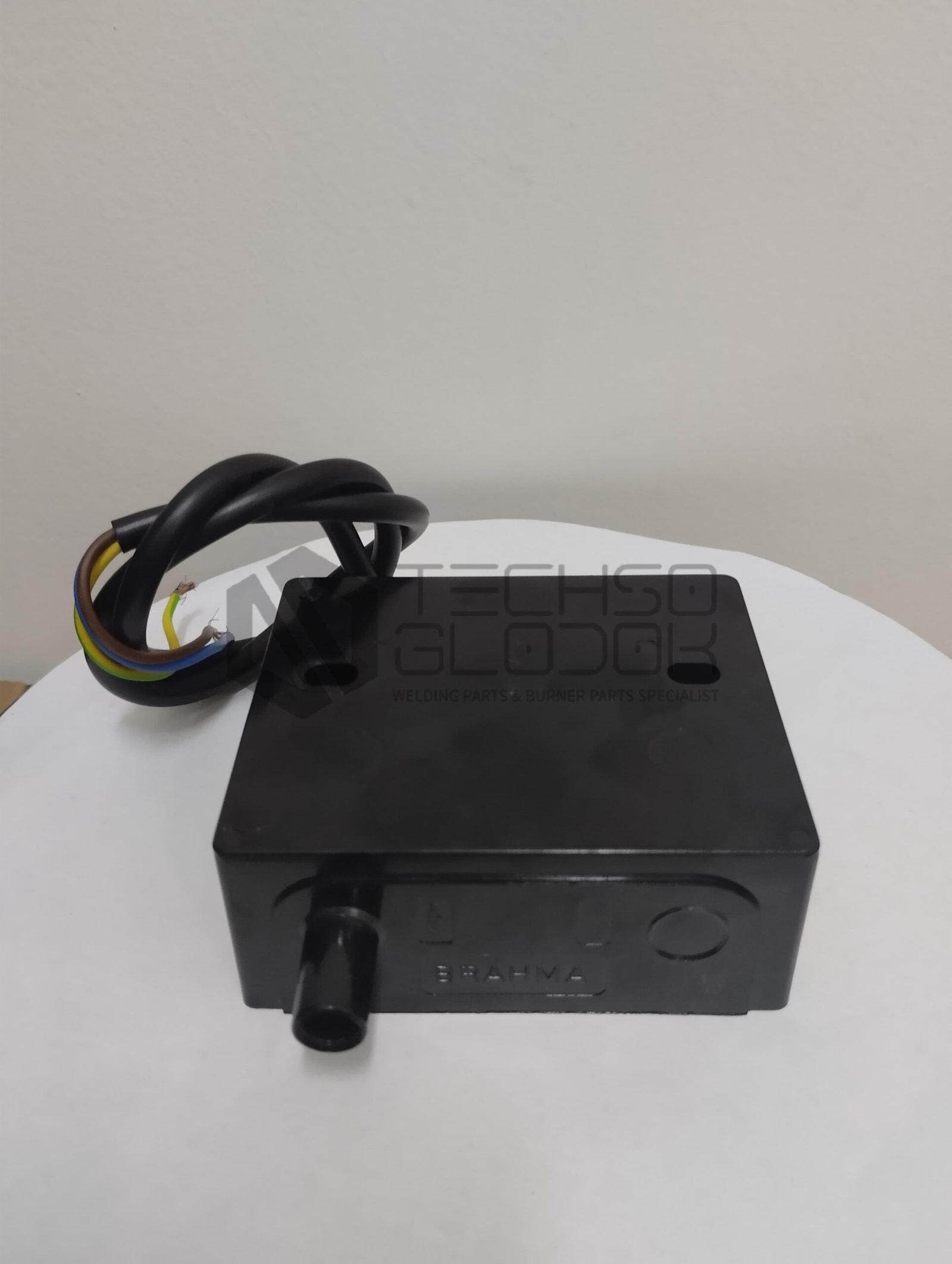

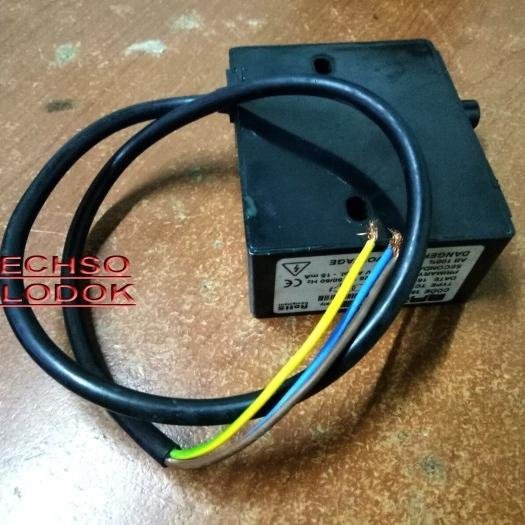

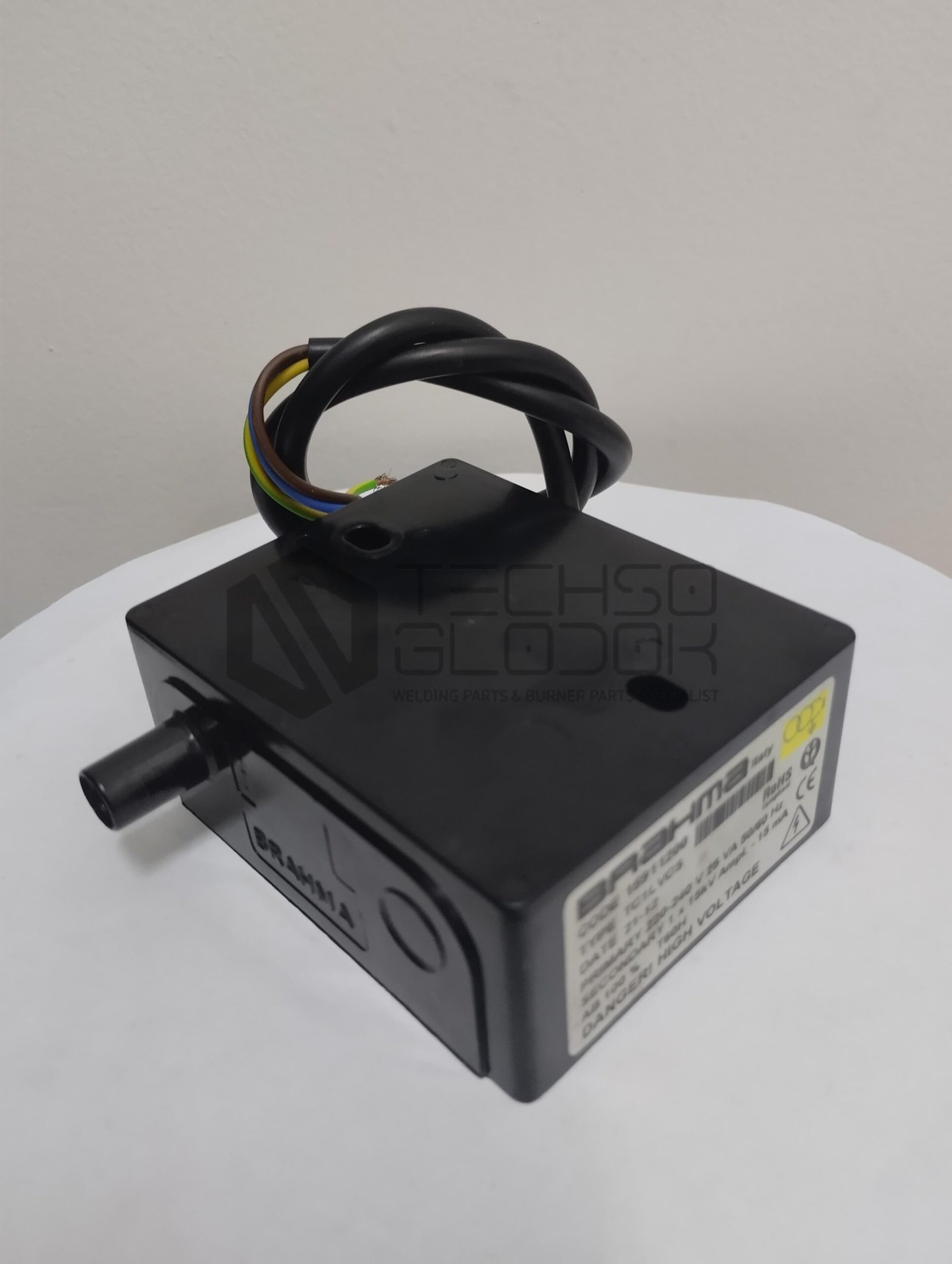

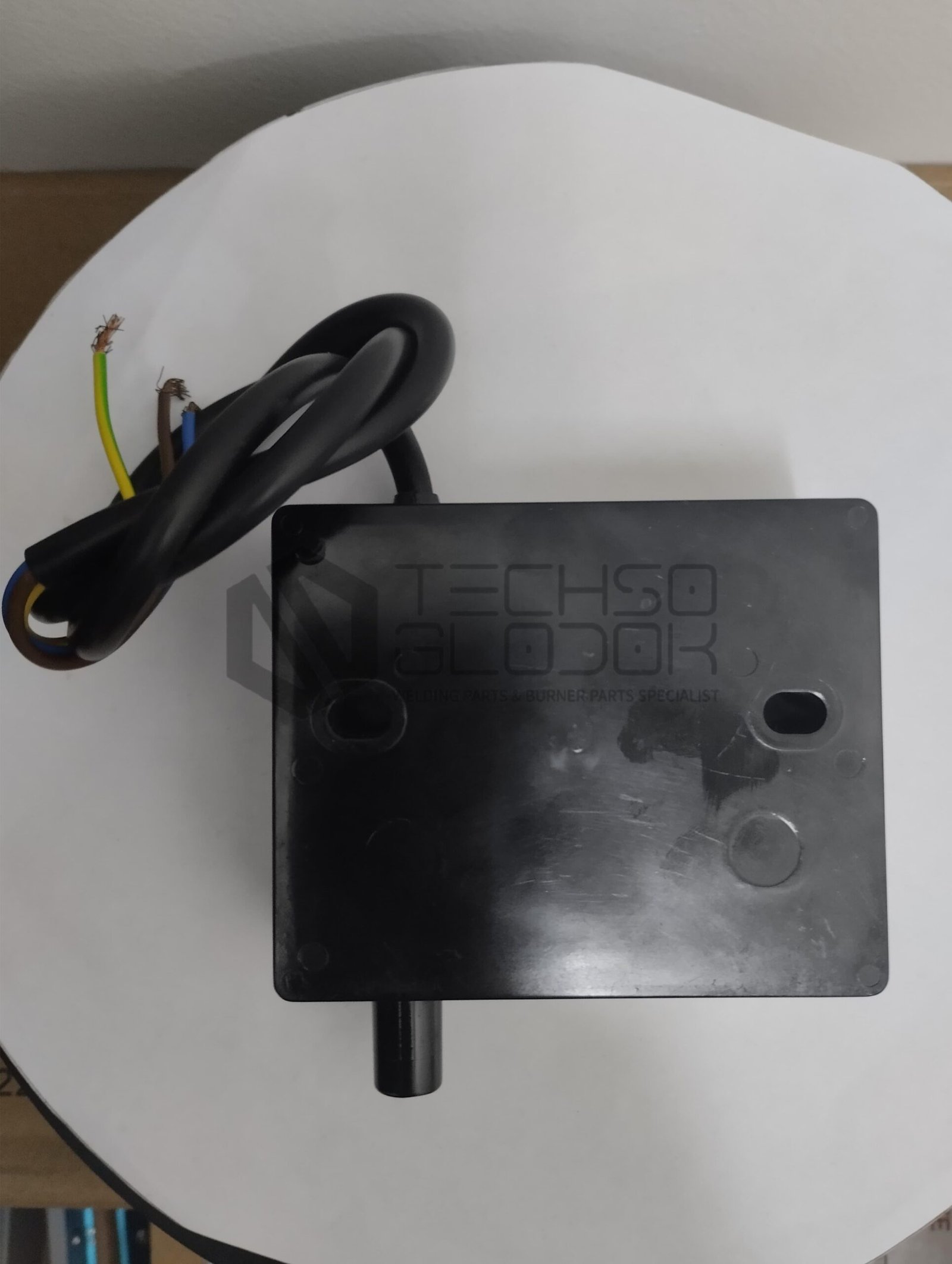

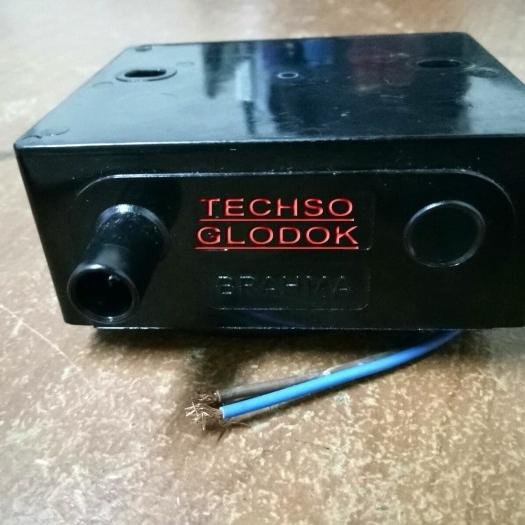

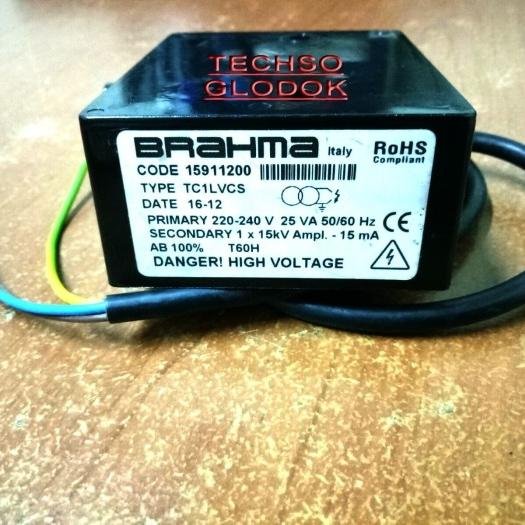

BRAHMA TC1LVCS pemantik api / ignitor burner

PEMANTIK API / IGNITOR BURNER BRAHMA TC1LVCS

DESCRIPTION
These ranges of electronic ignition transformers are
characterized by extremely limited overall dimensions and are
particularly suitable to equip water cleaners, forced draught
burners for gas and light or heavy oil, for civil and industrial
applications.
The working principle is based on a high frequency electronic
oscillator; the voltage it generates is then increased by using a
transformer with ferrite nucleus, reaching in this way output
voltage values up to 15 kV.
All types can be supplied with filter to minimize the emission
of electromagnetic interference. In this way this series of
electronic transformers is in compliance with the EMC
directive 89/336/EEC without the use of external filters.
The transformers of this series can also be supplied for nonpermanent
operation (50% duty cycle in 2 minutes). For
further information see relevant data sheets (TC”.A. and
TD”.A.).
FEATURES
Followings are the main features of these ranges of
transformers:
– available with inbuilt EMC filter;
– 100% duty cycle;
– limited weight and overall dimensions;
– high efficiency and ignition power;
– low consumption;
– single pole or double-pole high voltage output;
– different fixing and connecting systems;
– inbuilt protection against short circuit;
– in oil and gas burners, the safety of ignition
transformers depends on the control unit.
APPROVALS
– The transformers comply with the essential requirements
of the “Low Voltage Directive (LVD) 73/23/EEC”, as they
are approved by IMQ according to the product standards
EN 61558-1:1997 + A1:1998 + A11:2003 and EN 61558-2-
3:2000.
