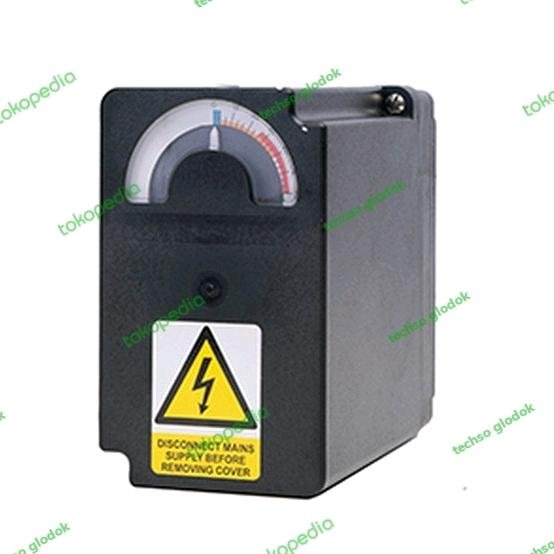

HONEYWELL LKS 160-84 ACTUATOR / SERVO MOTOR

HONEYWELL LKS 160-84 ACTUATOR / SERVO MOTOR

APPLICATION
The LKS 160 air damper actuator is designed to be fitted to
multi-stage or modulating oil and gas burners with fully
closed position.

DESCRIPTION
A synchronous motor powers a drive shaft and a backlash?free cam shaft via a gear reducer.
The cam shaft operates limit and auxiliary switches. The
position at which one of the limit or auxiliary switches operates
can be adjusted steplessly within the operating range using
the associated cam disc. Manually adjustable lever-operated
cams or spindle-driven cams, which can be adjusted with a
screwdriver, are available

FEATURES
Electric actuator up to 3.0 Nm
• Drive times: 3 … 65 sec.
• Variants: – clockwise or counter clockwise rotation
– with integrated electronic circuitry
– shaft version
• Position indicator
• Easily adjustable limit and auxiliary switches
• Synchronous motor

INSTALLATION AND OPERATION
• The regulations and standards applicable in each
particular case must be observed.
• Installation and commissioning must only be
carried out by qualified technicians.
• Electrical wiring must comply with national and
local regulations.
• Always lay the burner ignition cable separately
and as remotely as possible from the device and
other cables.
• Carefully check all cabling and wiring prior to
commissioning.
• Disconnect the actuators completely from the
power supply when working close to terminals
and connections.
• Screw the housing cover securely in place to
provide shock-hazard protection on the actuator
and all electrical connections.
• Electromagnetic emissions must be checked on
a case by case basis.
