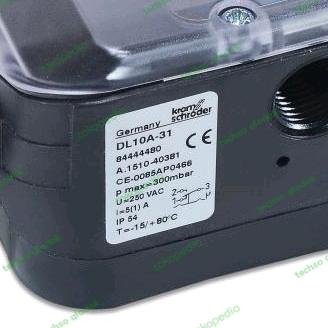

KROM SCHRODER DL 10A-31 gas pressure switch

KROM SCHRODER DL 10A-31 GAS PRESSURE SWITCH

Application
Pressure switches for air DL can be used as
positive pressure switches, vacuum sensors
or differential pressure switches for air, flue
gas and other non-aggressive gases. They
are not suitable for fuel gases. They monitor
extremely low pressure differentials.
They trigger switch-on, switch-off or switchover
operations if a set switching point is
reached. This switching point can be adjusted
using a hand wheel or, if required, it
can be fixed using an adjusting screw.
The diaphragm pressure switch with micro
switch features particularly high contact reliability
as low gas release components are
used.
DL..K is used in air-conditioning systems and
kitchens due to its low adjusting range (from
20 Pa).
The pneumatic and electrical connections on
DL 3,3 – 40K are accessible from the same
side in order to ensure space-saving and
easy-to-fit installation.
The switching point can be infinitely adjusted
using the hand wheel.
