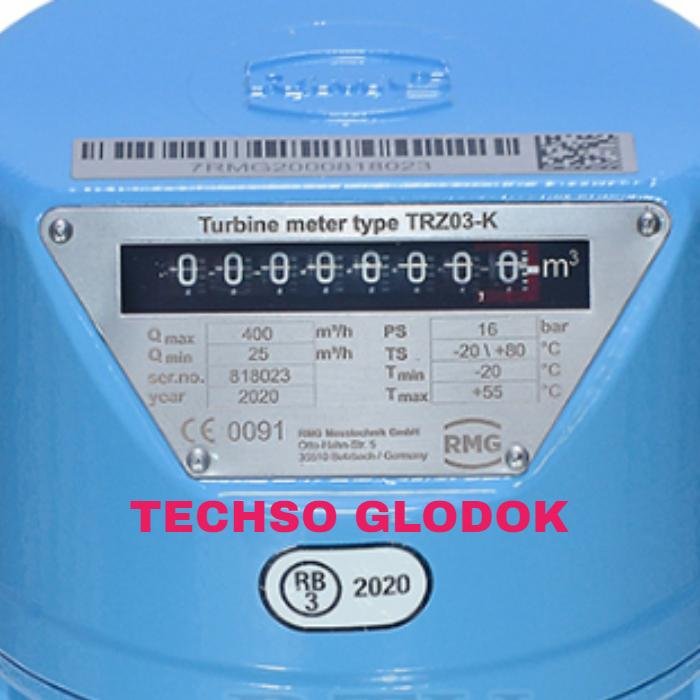

Capacity : 25 – 400 m3/h Connection Flange to DIN PN 16 Flow Direction : Left to Right
Introduction
Scope of application
The TRZ 03, TRZ 03-E and TRZ 03-L turbine meters are flow meters which can be used for custody
transfer metering. Unlike these instruments, the TRZ 03-K turbine meter can only be used for secondary metering. All three types of turbine meters measure the quantity of gas flowing through them in units of volume at prevailing pressure and temperature. Therefore, the units of volume are determined at flowing conditions. The volume of the gas flowing through is indicated by a mechanical totalizer in cubic meters at flowing conditions. In addition, the turbine meters can be fitted with HF or LF pulse transmitters and with reed contacts. In this way, pulses are obtained whose number is proportional to the volume which has flowed through. These pulses can be further processed by volume correctors.
TRZ 03-K
? For secondary metering.
? Installation length: ? 1.5 x DN
? Accuracy ? ?1% (above 0.2 Qmax)
The following applies to all meter types:
? Maximum operating pressure: 100 bar (not for gas meters with a plastic turbine wheel)
? Meter sizes from G 40 to G 16000
? Measuring range 1:20; 1:30 or 1:50 (see data sheets)
? Connections in compliance with DIN or ANSI are available.
? Special designs for aggressive gases are available.
? Available for low temperatures (< 10°C)
? All gas meters can be operated in any position up to the nominal diameter of DN 200.
