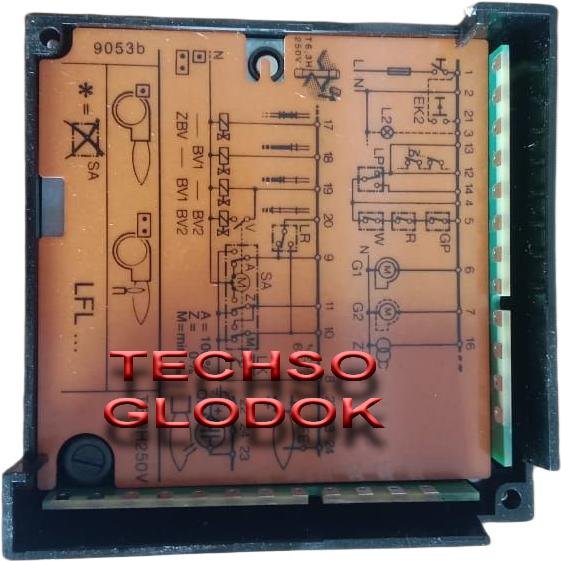

SIEMENS LFL1.635 original

SIEMENS LFL1.635 ORIGINAL 230V

Gas burner controls • for gas, oil or dual-fuel forced draft burners of medium to high capacity • for multistage or modulating burners in intermittent operation; for safety rea-sons, at least one controlled shutdown must take place every 24 hours • with checked air damper control • flame supervision – with UV detectors QRA… – with ionization probe The LFL1… and this Data Sheet are intended for use by OEMs which integrate the burner controls in their products. – Control and supervision of forced draft burners of expanding flame and interrupted pilot construction – For medium to high capacity – For intermittent operation (at least one controlled shutdown every 24 hours) – Universally applicable for multistage or modulating burners – For use with dual-fuel burners – For use with stationary air heaters The difference between 01 series and 02 series is the duration of the safety time for the pilot burner of burners equipped with pilot gas valves. For atmospheric burners of high capacity, LFL1.638 is the type to be employed. For burner controls for use with burners in continuous operation, refer to Data Sheet 7785 (LGK16…)

NOTE:

Produk yang telah dikirim dapat dikembalikan atau ditukar apabila memenuhi Syarat & Ketentuan berikut:

1.barang yg dikirim beda spek dari iklan

2.barang yg dikirim beda spek dari order

3.barang yg dikirim beda merek

Produk tidak dapat dikembalikan apabila:

1.terjadi salah order oleh pembeli (salah merek / salah spek)

2.hanya karena sudah tidak membutuhkan lagi barang yg telah diorder

3.tidak mencantumkan video unboxing yang utuh (wajib tanpa potongan dan wajib tanpa editing)

4.pembeli salah pilih barang karena ketidaktahuan/coba2

5.terjadi kesalahan kirim oleh penjual tetapi pembeli merusak barang/dus produk
